20+ Years of Engineering Excellence
installation across mississauga and peel region
Traditional concrete foundations in Mississauga require deep excavation, expensive soil disposal bins, and weeks of curing time. Our engineered screw piles bypass these delays entirely. We install our piles using compact equipment in tight spaces, so there are no ground vibrations and no damage to your yard or your neighbour’s property. Whether your architect calls them helical piles or your contractor calls them screw piles, your framing crew can start building on our steel caps the exact same day the installation is complete for both residential and commercial projects.
Rapid Mobilization
We dispatch our equipment quickly to prevent scheduling delays on site.
Versatile Foundations
We build foundations for nautical, houses, commercial and industrial sites.
High Capacity
Engineered steel piles safely support structural loads up to 50,000 pounds.
Site Footprint
Large diameter steel pile installations require a clear 30×60 foot workspace.
Custom Engineering
We provide stamped engineering layouts customized to your specific loading criteria.
From the narrow lakefront lots in Port Credit to the sprawling subdivisions of Erin Mills, Mississauga properties require precision installation. Traditional concrete footings often require digging trenches right against your property line.

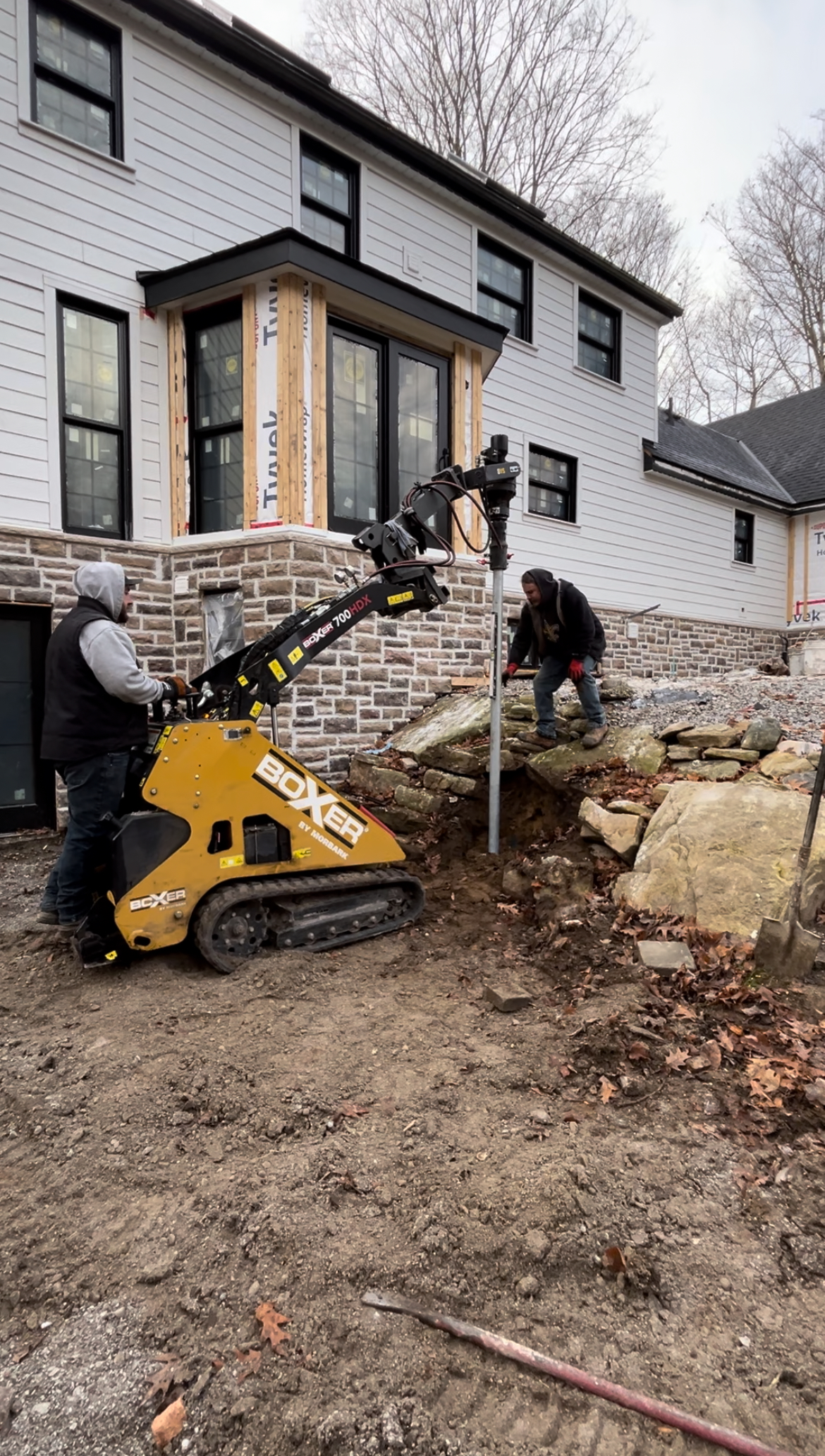

As a specialized steel pile company serving Mississauga, our compact installation machinery is built for both tight clearances and deep setbacks:
Soil conditions in Mississauga present unique challenges due to its diverse geography. From the sandy, high-water-table areas near Lake Ontario in the south to the extremely dense clay and glacial till prevalent throughout the northern subdivisions, traditional poured concrete footings struggle in these shifting environments. Digging near the Credit River valley often reveals unstable soils that require massive over excavation just to reach stable ground.
Our foundational screw pile installation equipment monitors digital torque data in real time, allowing our field crews to drive the steel right past the upper layers and the deep Mississauga frost line, locking the pile directly into dense, load bearing earth.
Here is what property owners and contractors need to know about the soil conditions across common Mississauga neighbourhoods when planning foundational work in the city.
Properties down by Lake Ontario often sit directly on highly fluid, fine beach sand coupled with an exceptionally high water table. Traditional excavation here is highly inefficient because poured concrete pits instantly flood and collapse without expensive, complex shoring. Helical piles spin right through the saturated, shifting sand layers without displacing them, anchoring safely into solid ground below the water line.
This region sits on a massive plain of highly compact glacial till and extremely dense, stiff clay. While this ground provides excellent long term weight bearing capacity once reached, its density makes manual digging or traditional trenching slow and difficult. We utilize our high torque hydraulic machinery to penetrate this hard, clay heavy earth.
Ravine adjacent properties near the Credit River deal with steep slopes, environmentally protected construction zones, and soft, shifting alluvial soils from natural drainage. Heavy excavation is often banned or structurally dangerous here due to slope failure risks. We use lightweight, specialized equipment to navigate the terrain without destroying protected vegetation, driving piles deep enough to steady the structure against lateral slope movement.
These older, highly developed central areas feature mixed urban fill, buried historical debris, and loose topsoil. Because the upper ground is uncompacted and structurally unstable, standard footings frequently settle unevenly. Our crews use structural steel extensions to drive the piles past this historical layer until our digital torque gauges confirm they have securely reached the stiff load bearing clay underneath.
Positioned near the northern and industrial zones, these areas consistently face silty, moisture heavy clay and elevated groundwater levels. The upper soil layers lack the sheer strength required to support heavy modern additions or backyard suites. Our installation process uses structural steel extensions to drive straight through these soft upper soils, pinning the foundation into dry, stable earth.
Navigating municipal building codes requires proper planning. Below is a detailed breakdown of what property owners must budget for when planning a foundation project in the City of Mississauga.
The team at Diamond Tech are always great to deal with. We have used them on multiple occasions and they always deliver. I highly recommend this company for any of your helical needs.
If you’re looking for a reliable, honest, and skilled piling contractor, Diamond Tech Piles is the company to call. Trevor has built a fantastic team, and I wouldn’t hesitate to use them again or recommend them to anyone looking for quality work.
I was with Trevor and his crew doing piles for a massive solar system and they got the job done in amazing time while ensuring precise drilling to the measurements I needed anytime I need more piles done for anymore jobs I am definitely giving them a ring and I would recommend them to any and everyone!!!
Trevor and his team from Diamond Tech Piles installed the helical piles for our deck and did an excellent job. They were professional, efficient, and clearly knew their work. The process involved some digging and machinery, but they took great care to minimize any impact and left the property in much better condition than we expected. We’re very happy with the results and would absolutely recommend Diamond Tech Piles to anyone needing helical pile installation.
Trevor ,Griffin and the crew were great. Installed 3.5” piles for a pavilion to be built. The conditions were not normal with roots,stones and access issues.They got the job done and were positive thru out the experience. Highly recommend
Very positive experience. Trevor was very responsive and polite - a real delight to work with. With his team, they drove helical piles around our existing pool for our new deck. We definitely ran into obstacles with rocks, buried cement, roots and the cement pool collar, however, they found great solutions. I have absolutely no hesitation with recommending Diamond Tech Piles - they are great!
Trevor and Zee installed 4 SP3 helical piles for us today for a gazebo. Saved our backs versus digging concrete piers, and gave us the peace of mind with the torque reports. It was great dealing with Trevor throughout the process, especially as a first time helical pile user who had a lot of questions. Highly recommend!
Trevor and the boys at diamond tech We’re an absolute pleasure to work with. Everything from start to finish was done right, Super easy to work with, and I would recommend them to anyone for their pile or deck rejects. Don’t bother shopping around, these are the guys you want working on your next backyard project.
The crew installed very large helical piles for us to build our cottage on. The owner Trevor was very responsive and got the job done by organizing a barg, to bring their equipment to our remote location. It was a great experience all around.
DiamondTech installed helical piles for a project we are working on, and they were fantastic from start to finish. Communication was excellent. Trevor was responsive and answered all of our questions thoroughly. His team's professionalism and efficiency made the entire process smooth and stress-free. We wouldn't hesitate to work with them again!
Trevor and his guys were awesome. Originally planned helical pile installation for late April, but when deck contractor schedule changed, they went above and beyond to get job done weeks sooner to assist. Thank you for your accommodation, very much appreciated!!
Yes. We supply full stamped engineered shop drawings to submit directly with your City of Mississauga building permit package. Once our crew wraps up the installation, we hand you an official letter of conformity to give to the building inspector for a fast sign off.
Yes. We operate compact, specialized installation rigs designed specifically to navigate the narrow side yards and property lines common in Port Credit and Cooksville. For landlocked properties with zero side access, we use cranes to safely lift our equipment over the house directly into the backyard.
If we encounter old buried brick, concrete chunks, or historical fill in older subdivisions, our high torque hydraulic equipment can typically displace or push past the obstruction. If the obstruction is massive, our engineers adjust the layout on site.
For full custom home builds, large multi story additions, or backyard suites, a geotechnical soil report is highly recommended. It tells our engineering team exactly what is happening under your specific lot so we can size the piles accurately before arriving on site.
Shipping containers put concentrated weight on their corner castings. We align our pile layout precisely with these specific load points and use heavy custom caps to transfer the weight into the steel piles.
Yes. Digging a traditional foundation means paying high rates for disposal bins and dirt removal labor. Helical piles displace almost zero soil, completely eliminating the need to haul dirt off your property.
Planning a temporary or relocatable structure? Read our guide to removable and reusable helical piles for temporary foundations.
