Waterfront Structures and the Pile Configuration Each One Needs

Every waterfront structure asks something different of its foundation, and the pile layout follows the load, the water depth and the ice. Here is how the common ones are usually approached; your engineer sets the final configuration and the torque log proves it.

Docks

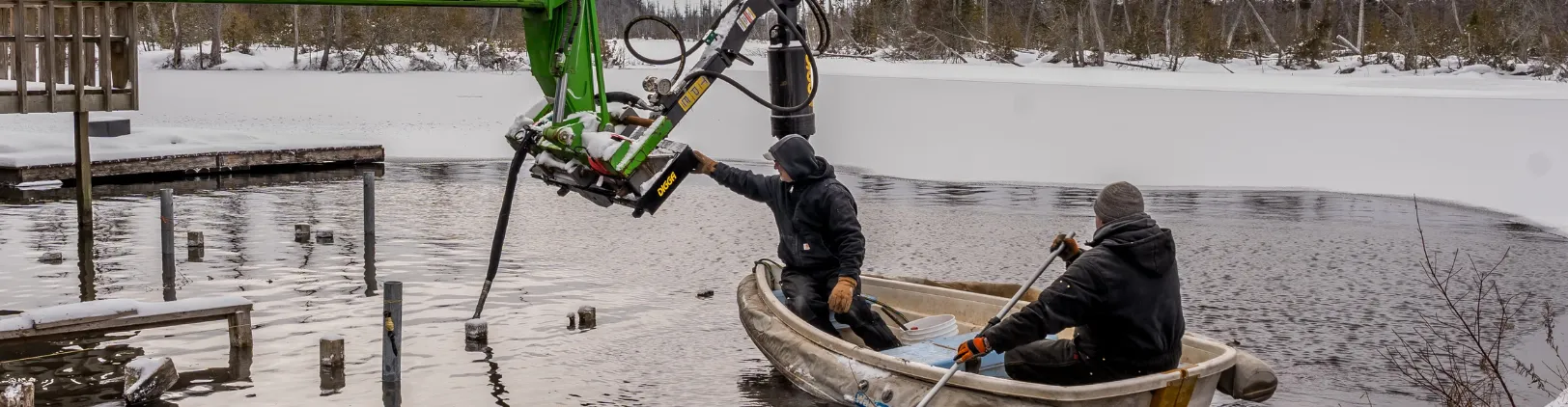

A fixed dock is a row of piles under each side of the walkway and platform, spaced to the framing. Vertical load is small; ice and wave load are what size the shaft, so a dock pile is often a heavier shaft than the same span would need on land, driven well below the lakebed to resist uplift when ice grips it. Piles can be installed from the shore or from a barge, and the deck bolts to caps at the finished height so the structure sits level regardless of where each pile found bearing.

Boathouses

A boathouse is a building, so it carries roof, wall and snow load on top of the marine conditions, and it needs a municipal building permit on top of the shoreline approvals. That means more piles, larger shafts and usually multiple helix plates, laid out on a stamped drawing. Two-storey boathouses and boathouses with living space above are engineered like a house foundation that happens to stand in water.

Boardwalks and pedestrian bridges

Long runs through marsh, wetland or over a stream are where helical piles have no real competition. There is no excavation, no spoil and no concrete in the water, so the environmental footprint is minimal and the work is easy to permit. Piles go in at each bent, spaced to the joist span; soft organic ground means extensions and a larger helix to find bearing.

Shoreline decks and platforms

A deck at the water’s edge behaves like a land deck on the dry side and like a dock on the wet side. The piles nearest the water are set for ice and for saturated soil; the rest are ordinary deck footings. Because the rig is compact, a shoreline deck can be built without disturbing the bank, which matters to the conservation authority.

Cottage foundations on the water

Cottages on rock, on a slope down to the lake, or on a lot where a concrete truck cannot get in are built on piles torqued to refusal on the Canadian Shield or driven to competent soil, with a grade beam or a steel frame on the caps. The same system carries additions, bunkies and saunas, and it can be installed in winter when the lake road is quiet.

Ontario Approvals for Waterfront Structures, and Who Handles What

A dock, boathouse or shoreline structure in Ontario can need approvals from up to four bodies, and the property owner holds those approvals. We build to the drawings and conditions the permits require and supply the pile specifications, layout drawings and installation records for the application package.

• Conservation authority. Any work in or near the shoreline, a watercourse or a wetland in a conservation authority’s jurisdiction needs its permit before work starts. This is usually the first call. It covers the disturbance to the bank and the water, which is where a no-excavation pile install helps the application.
• Ministry of Natural Resources (MNRF) work permit. Most lakebed in Ontario is Crown land, and structures on it, including many docks and boathouses, fall under the Public Lands Act. Smaller docks and boathouses are often exempt if they meet the ministry’s size and placement rules; larger ones need a work permit. The rules are set out on the province’s Public Lands Act work permits page.
• Fisheries Act and in-water timing windows. In-water work is restricted during fish spawning periods, which vary by waterbody and species. The timing window decides when the piles can go in, so it drives the schedule more than anything else on this list. Where fish habitat may be affected, a review under the federal Fisheries Act may apply.
• Municipality. A boathouse, a shoreline deck attached to a building, or any roofed structure needs a building permit from the township or district, and shoreline zoning bylaws set setbacks and size limits. Muskoka townships and the lakeshore municipalities around Simcoe and Georgian Bay each have their own rules.
• Transport Canada. Larger structures that could affect navigation may fall under the Canadian Navigable Waters Act. Most private docks do not.

What you handle: the applications, the fees and the conditions. What we handle: engineered pile specifications and a layout drawing for the package, installation within the approved timing window, the torque log for every pile, and a site left the way the conservation authority expects to find it.

Ice Movement and How the Pile Responds to It

Ice is the question every Muskoka, Simcoe and Georgian Bay owner asks, and it is the load that actually sizes a dock pile. Lake ice grips whatever passes through it; when the water level rises in late winter and spring, the sheet lifts and tries to take the pile with it (ice jacking), and when the sheet shifts with wind it pushes sideways on the structure.

A helical pile handles both in three ways. The shaft is slim, so there is little surface for the ice to grip compared with a timber crib or a concrete pier. The helix plates are anchored well below the lakebed in soil the ice cannot reach, so the pile resists uplift instead of walking out of the ground a little more each winter. And shaft size and embedment depth are chosen for the lateral load, so on exposed shorelines a heavier shaft, deeper embedment or a second helix goes in where a sheltered bay would need less. Where ice is severe, the dock deck itself can be detailed to be lifted or to shed ice while the piles stay put.

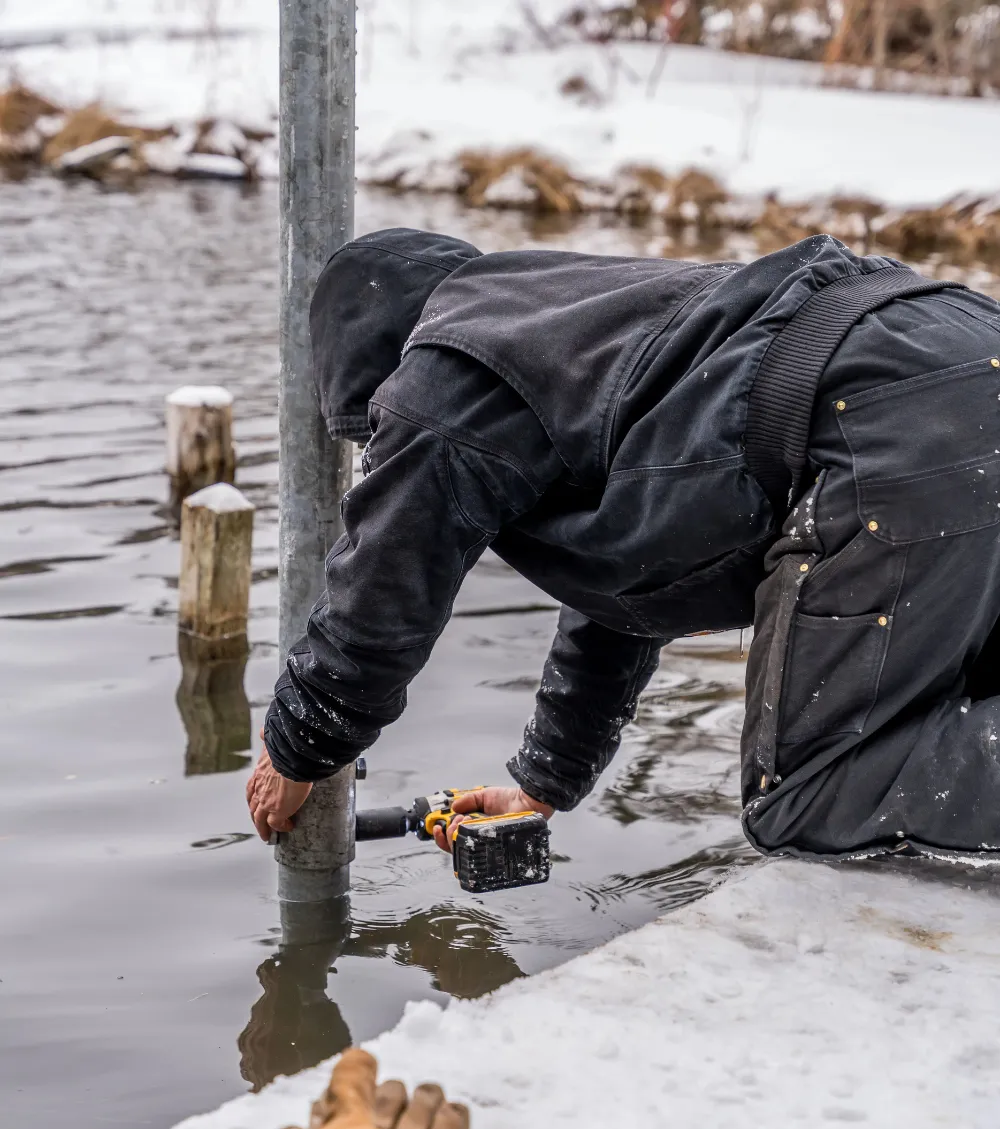

Corrosion in Fresh Water, and What the Galvanizing Actually Buys

Our piles are hot-dip galvanized: the steel is dipped in molten zinc, which bonds to it and forms a coating that corrodes sacrificially, protecting the steel underneath. In fresh water and ordinary soil the zinc wears very slowly, which is why galvanized steel is the standard for buried and submerged structural steel in Ontario lakes.

What shortens the life of the coating: soft, acidic or low-mineral water, which is common on the Shield; water and soil with high chloride content; stray electrical currents from nearby shore power; and contact with dissimilar metals, which sets up a galvanic cell that eats the zinc faster. What that means in practice is that dock hardware should be galvanized or stainless, not bare or copper-bearing, and that in aggressive water an engineer can specify a heavier coating or a sacrificial thickness allowance on the shaft. Service life is decided by water chemistry, so we look at it case by case rather than quoting one number for every lake.
